hit sales

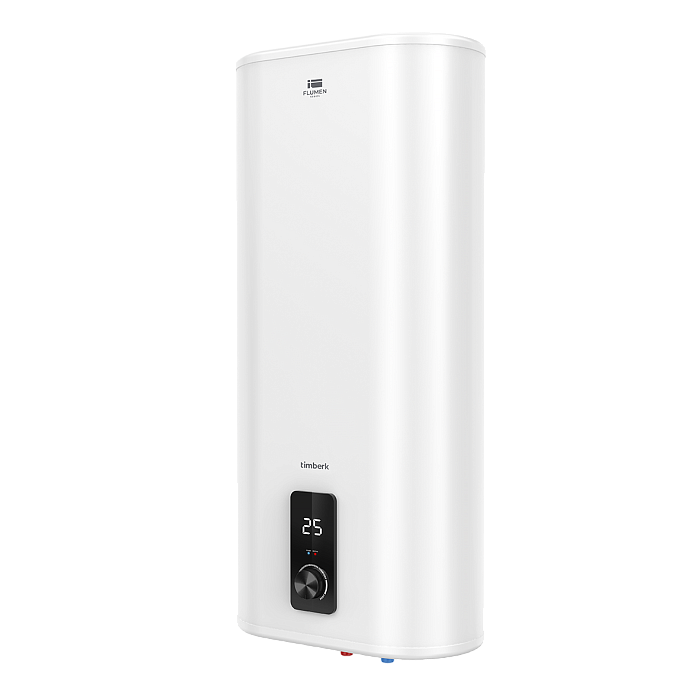

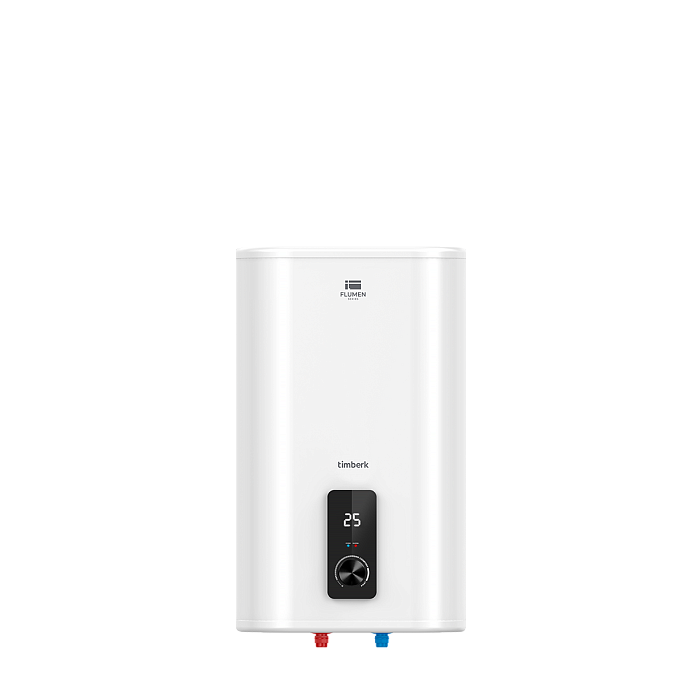

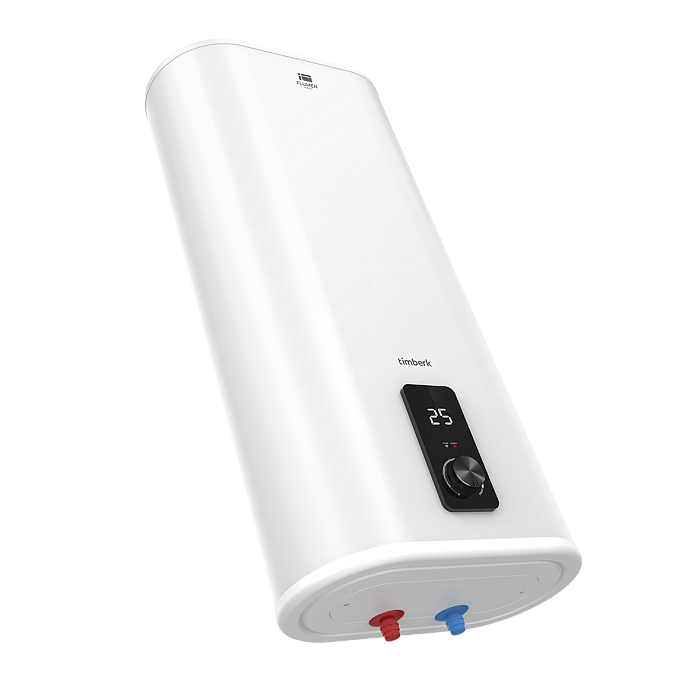

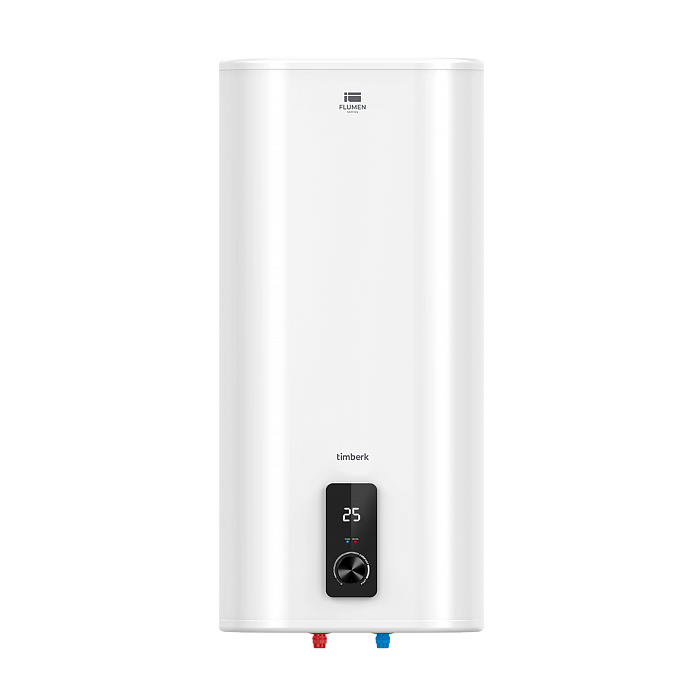

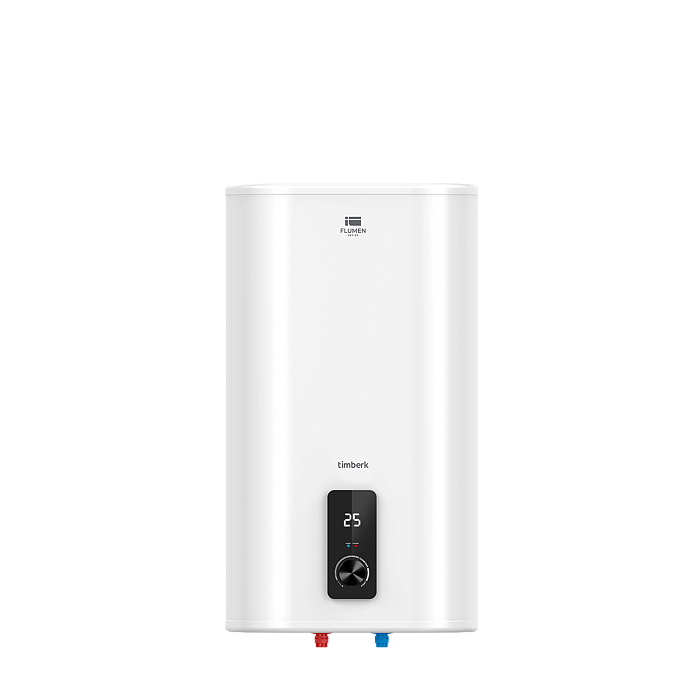

Flumen Series: FSM9 V

Electric storage water heater
Send to mail
Send
Choose a model
Equalization list
Added
Volume, l
100 一 30
Rated power consumption, W
2000/1500
Тип ТЭНа
Dry
Location
Vertical
Control panel
Mechanical with an LED display
Flagship product of 2021 - FLUMEN series water heaters Modern solutions for maximum reliability and comfort 365 days a year!

Confirmed by the quality laboratory

About the device

Advantages

  • Double "dry" heating element that enables the highest efficiency of water heating throughout the product’s entire service life
  • Control panel designed in-house in a black color that displays the real water temperature on the LED display.


Main characteristics

  • There is a high level of energy efficiency thanks to a layer of high-quality thermal insulation that uniformly, without any voids, fills the inner space between the outer casing and the inner storage
  • Save space in your home thanks to the compact, flat shape of the steel housing
  • The enlarged magnesium anode protects the inner storage from corrosion, and reduces the amount of scale that forms
  • The optimal position of the "Comfort" thermostat knob corresponds to the most comfortable water heating temperature (+57 °С, (±2 °С)), as well as the most efficient mode of electricity consumption
  • Easy to maintain and repair without disconnecting from the water supply network. Repairable bottom cover for the water heater
  • The inner storage and all internal components are made of SUS 304 stainless steel (1.2 mm), which provides the highest reliability and protection against corrosion
  • 3D Logic protection system: DROP Defense - protection against leakage and overpressure inside the storage, SHOCK Defense - protection against electrical leakage (ELCB), HOT Defense - two-level protection against overheating
  • The set includes a 1.5 meter power cord.

Model
SWH FSM9 30 V
SWH FSM9 50 V
SWH FSM9 80 V
SWH FSM9 100 V
Color
Белый с элементами черного
Белый с элементами черного
Белый с элементами черного
Белый с элементами черного
Тип ТЭНа
Dry
Dry
Dry
Dry
Volume, l
30
50
80
100
Rated power consumption, W
1500
2000
2000
2000
Rated current, A
6,8
9,09
9,09
9,09
Rated supply voltage, V/Hz
220~/50
220~/50
220~/50
220~/50
Moisture protection class
IPX4
IPX4
IPX4
IPX4
Electrical protection class
I class
I class
I class
I class
Location
Vertical
Vertical
Vertical
Vertical
Heating time at Δ 30°C, min.
42
70
112
140
Actual annual electricity consumption, kW*h
405,1
512,6
588,3
670,5
Nominal pressure, MPa
0,8
0,8
0,8
0,8
Control panel
Mechanical with an LED display
Mechanical with an LED display
Mechanical with an LED display
Mechanical with an LED display
Material of inner tank
Stainless steel
Stainless steel
Stainless steel
Stainless steel
The shape of the water heater
Flat
Flat
Flat
Flat
Длина шнура, м
1.5
1.5
1.5
1.5
Weight (net), kg
10
13,8
19,5
23
Device dimensions, mm
540x435x258
815x435x258
945x496x393
1145x496x393

Scope of application

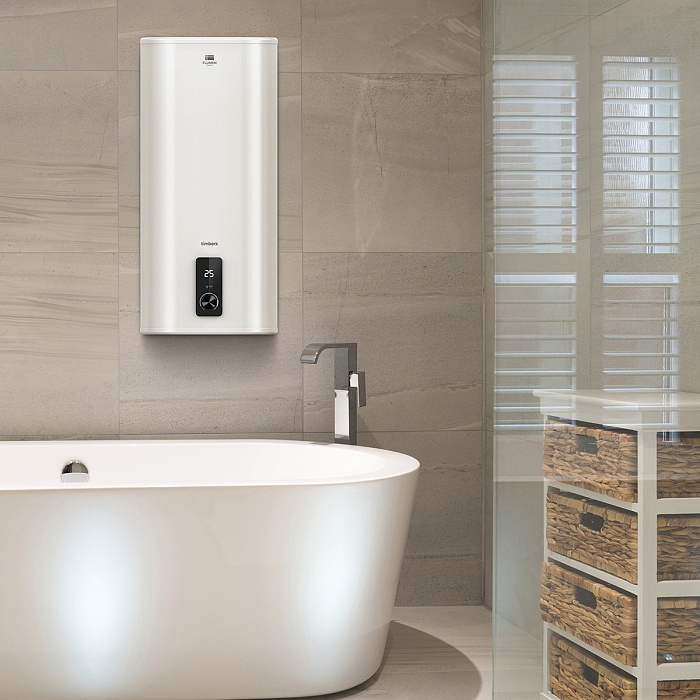

Electric storage water heaters (boilers) represent equipment designed for use on household and commercial premises if a centralized hot water supply system is temporarily or permanently absent. Storage water heaters are ideally suited to deliver hot water both to houses outside the city limits and apartments inside the city.

The water heaters are hooked up to a building’s regular electrical network, and can enable delivering hot water to several points of consumption. They differ from each other chiefly in terms of their cubic capacity (generally speaking, this ranges from 30 to 100 liters), the heating element’s power, the material from which the inner storage is manufactured, and the heating capacity.
