Где купить водонагреватель накопительный Серия Moon: RE17 от производителя

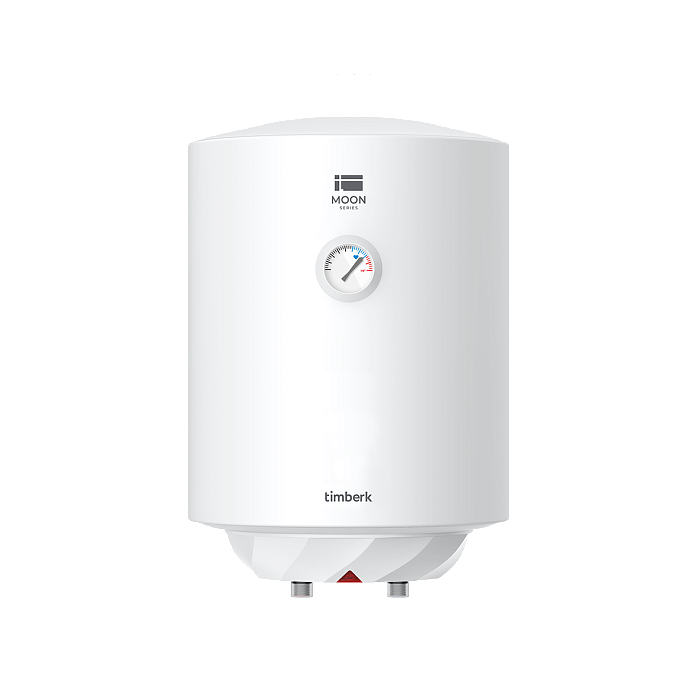

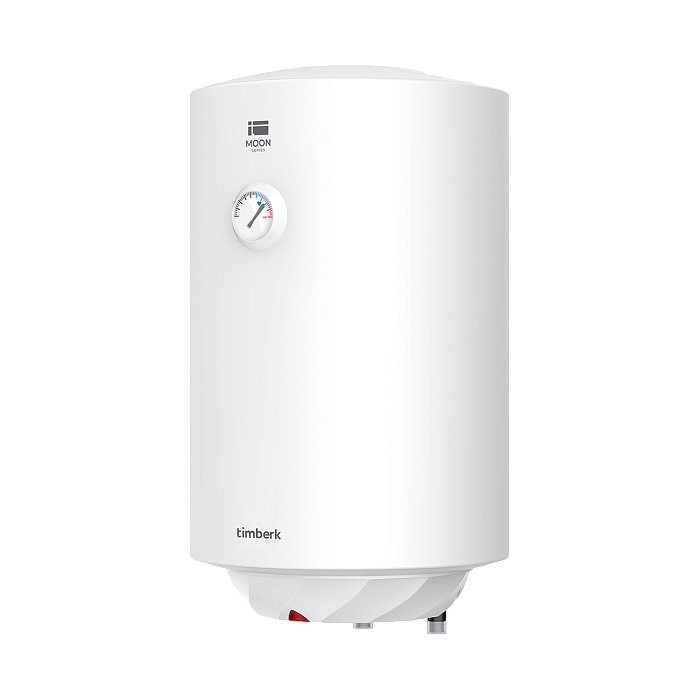

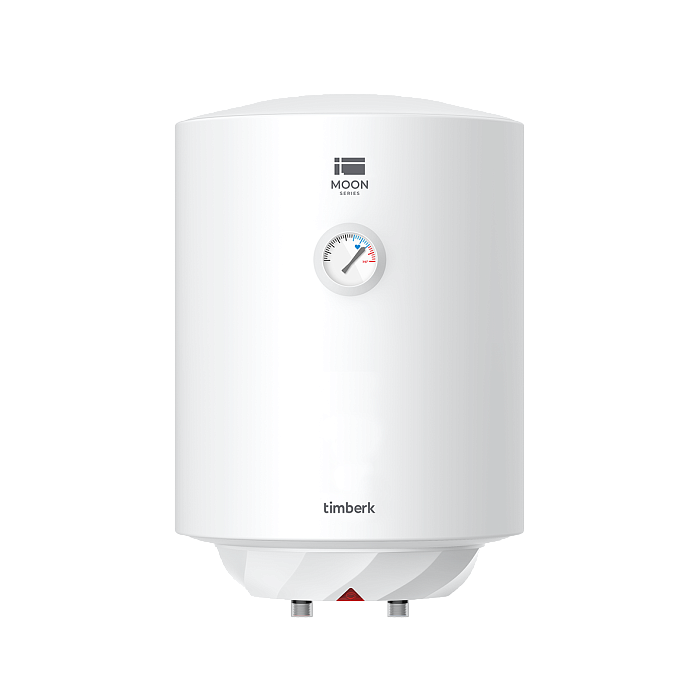

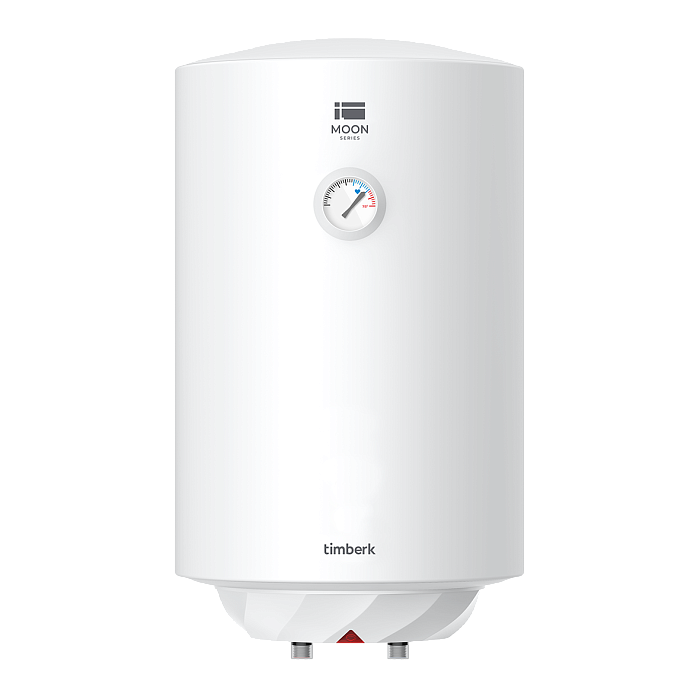

Electric storage water heater  Timberk Moon Series: RE17

Send to mail
Send
Choose a model
Equalization list
Added
Volume, l
Застраховано
Volume, l
100 一 30
Rated power consumption, W
1500
Heating element type
Brass
Location
Vertical
Control panel
Mechanical
The Moon series water heater is a reliable companion that ensures your comfort!

Confirmed by the quality laboratory

About the device

Advantages

  • The elegant design of the housing harmoniously decorates any interior
  • Thanks to a special protective coating, the copper heating element has an increased service life

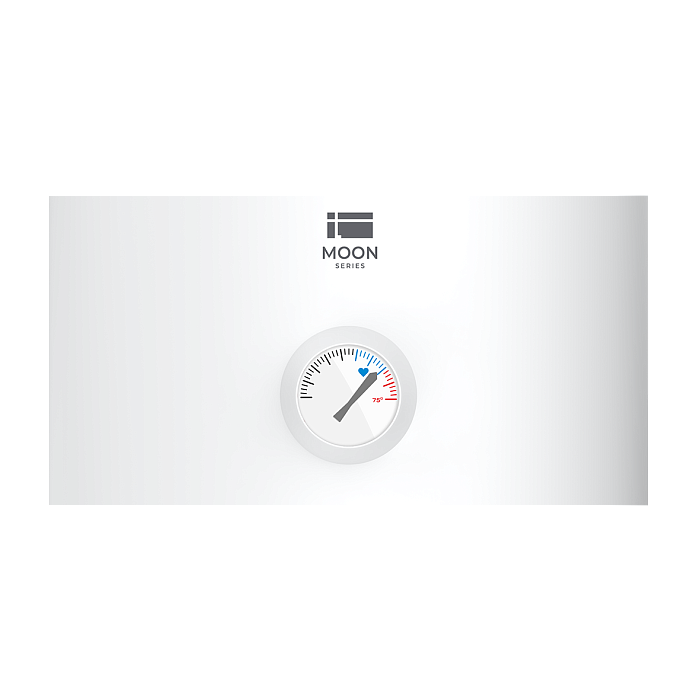

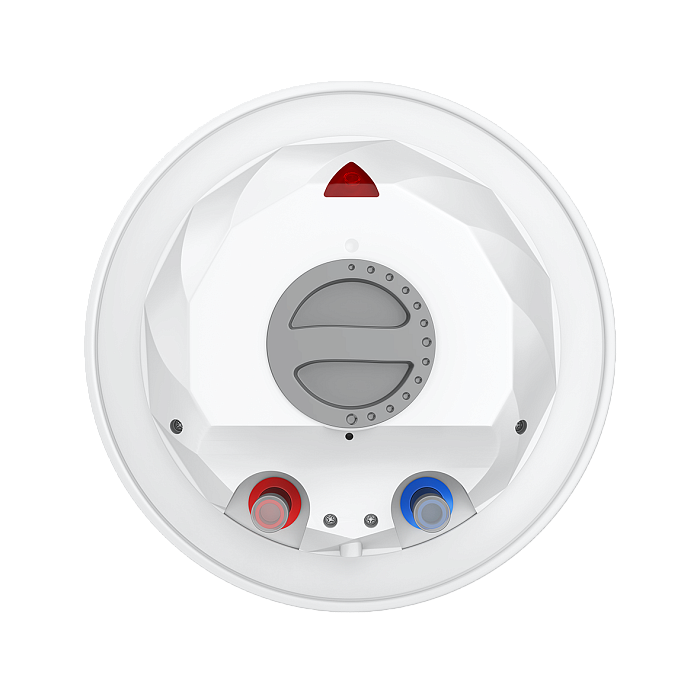

  • Intuitive controls with a mechanical thermostat on the bottom panel
  • The outer casing is made of high-quality steel.

Main characteristics

  • There is a high level of energy efficiency thanks to a layer of high-quality thermal insulation that uniformly, without any voids, fills the inner space between the outer casing and the inner storage Real reduction of heat loss due to the complete absence of "heat bridges"
  • Long lasting thanks to a double layer of glass-ceramic enamel applied using a "dry" method
  • The enlarged magnesium anode protects the inner storage from corrosion, and reduces the amount of scale that forms
  • 3L Safety Protection System (3L SPS): Protection for the device against overheating, "dry" heating, overpressure inside the storage, and leakage
  • Readout for hookup to the electrical network
  • Repairable design for the lower cover of the water heater
  • The set includes a 1 meter power cord.
Rated power consumption, W
1500
1500
1500
1500
Heating element type
Brass
Brass
Brass
Brass
Volume, l
30
50
80
100
Rated current, A
6.52
6.52
6.52
9,1
Rated supply voltage, V/Hz
220~/50
220~/50
220~/50
220~/50
Electrical protection class
I class
I class
I class
I class
Moisture protection class
IPX4
IPX4
IPX4
IPX4
Location
Vertical
Vertical
Vertical
Vertical
Heating time at Δ 30°C, min.
44.2
73.6
117.8
147.3
Actual annual electricity consumption, kW*h
358,4
351,1
592,4
677,44
Nominal pressure, MPa
0,75
0,75
0,75
0,75
Control panel
Mechanical
Mechanical
Mechanical
Mechanical
Material of inner tank
Steel 2 layer antibacterial enamel
Steel 2 layer antibacterial enamel
Steel 2 layer antibacterial enamel
Steel 2 layer antibacterial enamel
The shape of the water heater
Round
Round
Round
Round
Количество режимов нагрева
3
3
3
3
Wire length, m
1
1
1
1
Weight (net), kg
14,3
18
24
28,5

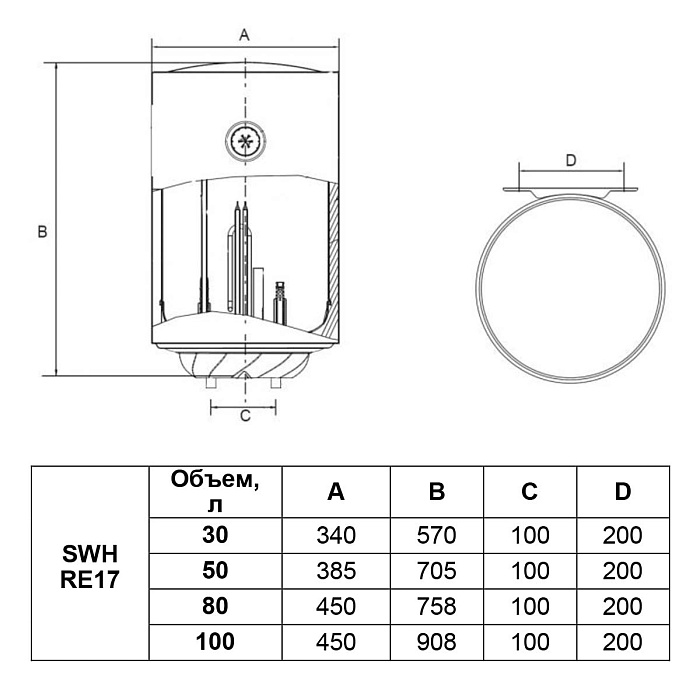

Device dimensions, mm
340*570
385*705
450*758
450*908

Scope of application

Electric storage water heaters (boilers) represent equipment designed for use on household and commercial premises if a centralized hot water supply system is temporarily or permanently absent. Storage water heaters are ideally suited to deliver hot water both to houses outside the city limits and apartments inside the city.

The water heaters are hooked up to a building’s regular electrical network, and can enable delivering hot water to several points of consumption. They differ from each other chiefly in terms of their cubic capacity (generally speaking, this ranges from 30 to 100 liters), the heating element’s power, the material from which the inner storage is manufactured, and the heating capacity.
