Electric storage water heater Timberk Reinforce Series: FSK1

Send to mail

Choose a model

Equalization list

Added

Volume, l

100 80 50 30

Застраховано

Volume, l: 100 一 30
Rated power consumption, W: 2000

The water heater’s housing has a classic white color, a sharp, artistic control panel with a comfortable handle, and represents beauty and flawless operation for many years.

Подобрать аналог More

Confirmed by the quality laboratory

About the device

Advantages

Save space in your home with the compact, flat shape of the Reinforce water heater
A reliable copper heating element with a power of 2000 W

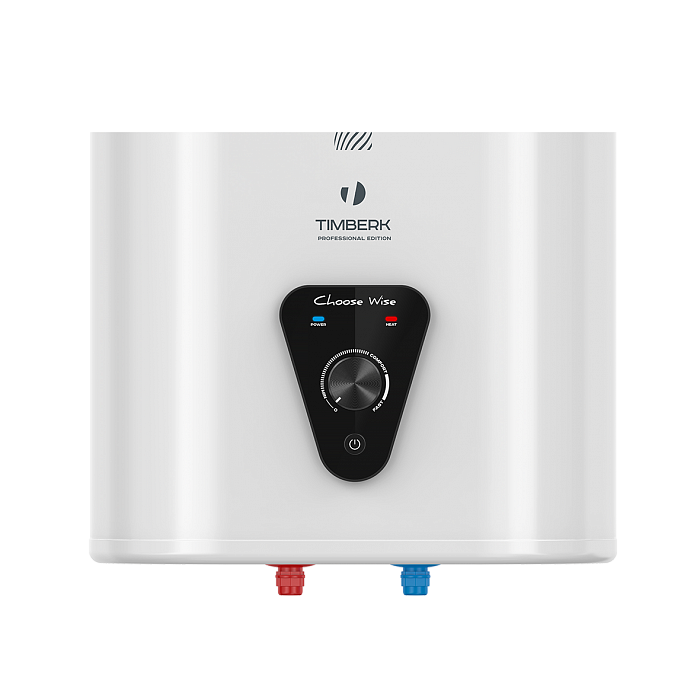

A stylish control panel with a two-color readout of the operating modes

Main characteristics

Long lasting due to SUS 304 1.2 mm thick stainless steel internal tanks
High-quality insulation layer made using high-precision foam filling technology that significantly reduces heat losses
A heavy-duty overflow system guarantees efficient mixing and uniform heating.
Easy to maintain and repair without disconnecting from the water supply network
Absolute safety for operations thanks to an integrated 3D Logic protection system: protection against leakage, overpressure, electrical leakage and two-level protection against overheating

Model

SWH FSK1 30 V

SWH FSK1 80 V

SWH FSK1 100 V

SWH FSK1 50 V

Rated power consumption, W

2000

Volume, l

100

Rated current, A

9,09

Rated supply voltage, V/Hz

220~/50

Electrical protection class

I class

Moisture protection class

IPX4

Heating time at Δ 30°C, min.

112

140

Actual annual electricity consumption, kW*h

394,2

565,8

642,4

496,4

Constant daily loss, kW*h/day

1,1

1,6

1,8

1,4

Nominal pressure, MPa

0,8

The shape of the water heater

Flat

Weight (net), kg

9,86

19,36

22,79

13,79

Device dimensions, mm

568x274x436

998x306x496

1208x306x496

873x274x436

Instructions Download photo

Scope of application

Electric storage water heaters (boilers) represent equipment designed for use on household and commercial premises if a centralized hot water supply system is temporarily or permanently absent. Storage water heaters are ideally suited to deliver hot water both to houses outside the city limits and apartments inside the city.

The water heaters are hooked up to a building’s regular electrical network, and can enable delivering hot water to several points of consumption. They differ from each other chiefly in terms of their cubic capacity (generally speaking, this ranges from 30 to 100 liters), the heating element’s power, the material from which the inner storage is manufactured, and the heating capacity.
