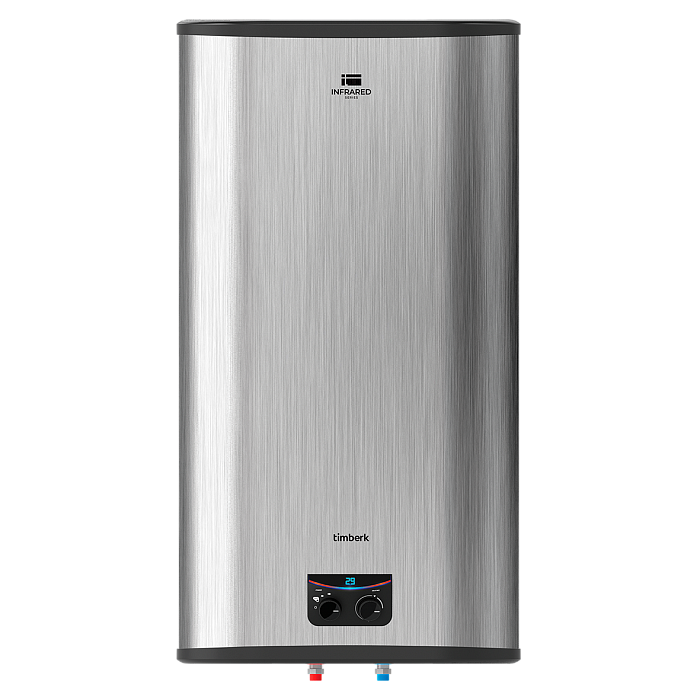

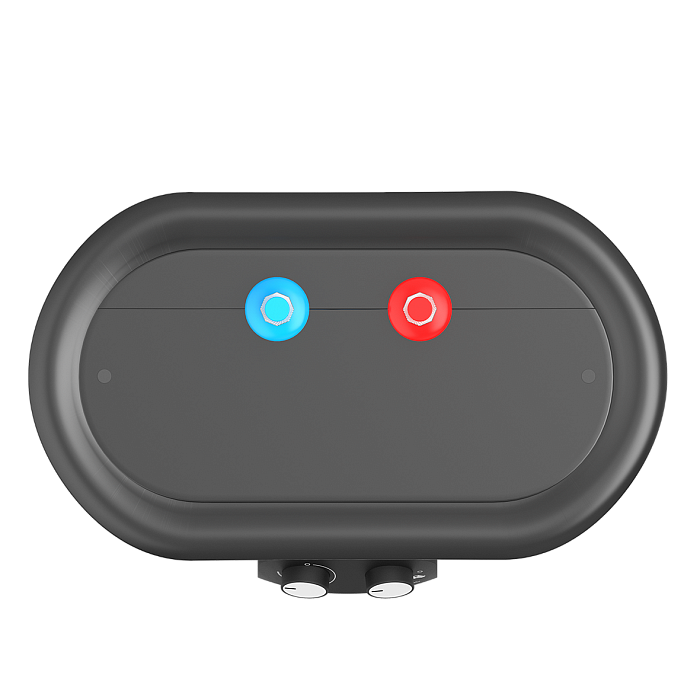

Electric storage water heater  Timberk InfraRed Series: FSM7

Send to mail
Send
Choose a model
Equalization list
Added
1 отзыв
Volume, l
80 50
Застраховано
Volume, l
80/50
Rated power consumption, W
2500
Heating element type
Infrared
Location
Vertical
Control panel
Mechanical with an LED display
It is a premium product with a patented infrared heating element that enables quickly heating up water and guarantees a long service life!
Where can I buy? More

Confirmed by the quality laboratory

About the device

Advantages

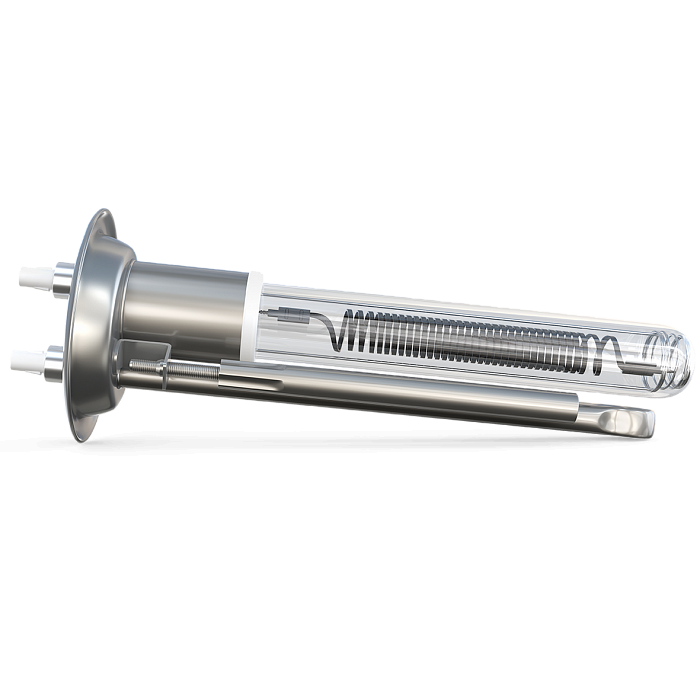

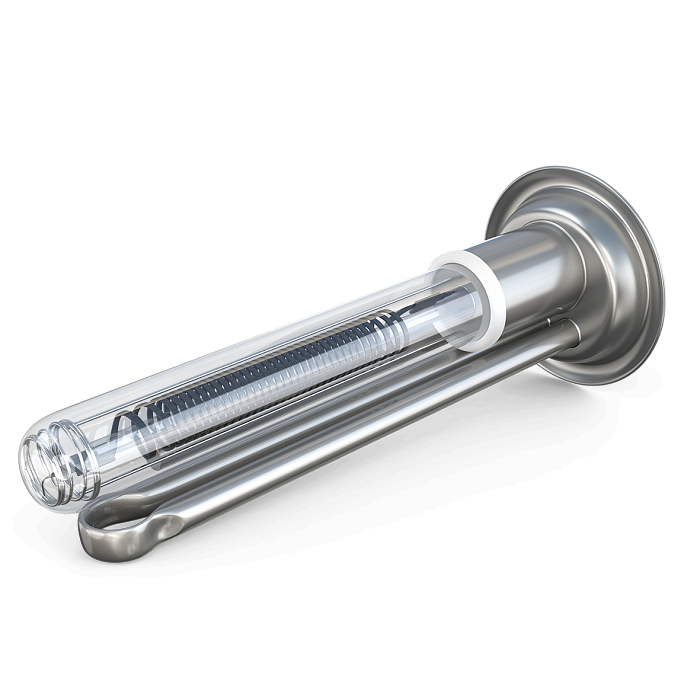

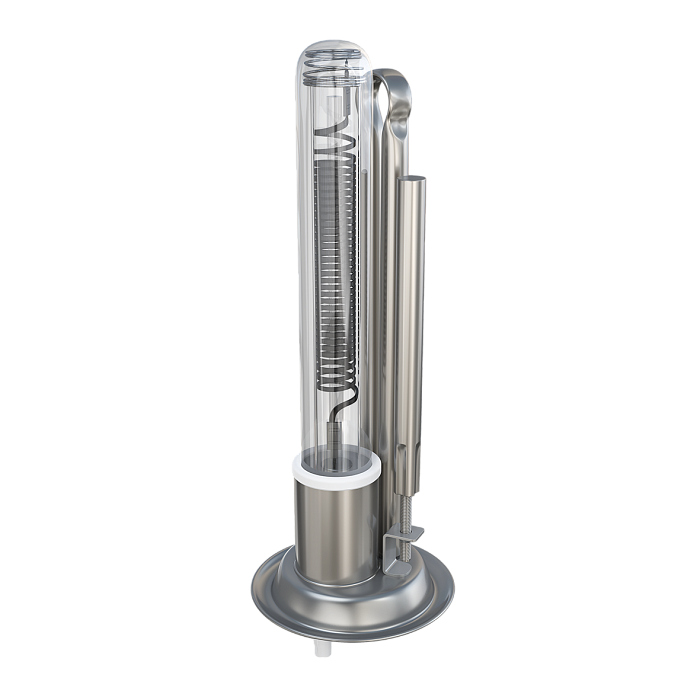

  • The heat-resistant glass of the heating element is not subject to corrosion, and is resistant to the effects of even dirty and "aggressive" water (that has a destructive effect on metals)
  • Infrared radiation allows the instantaneous heating of water, reaching an assigned level of power in seconds

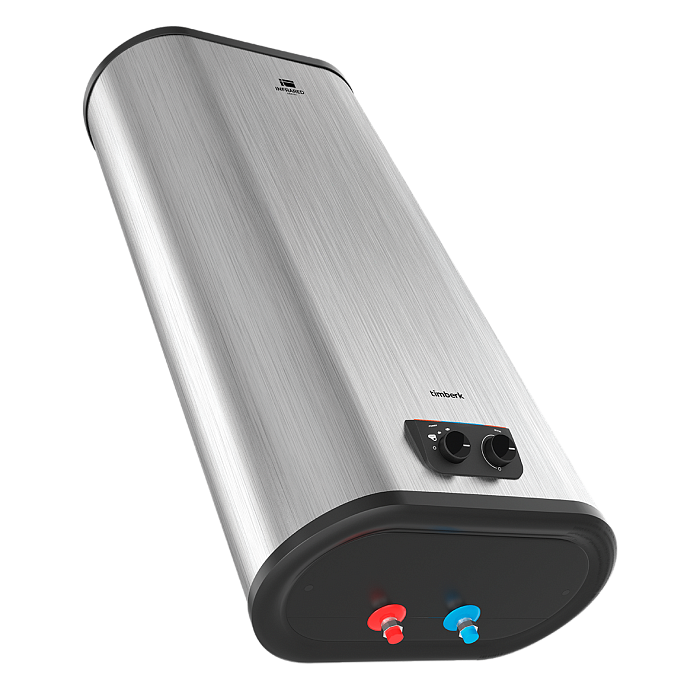

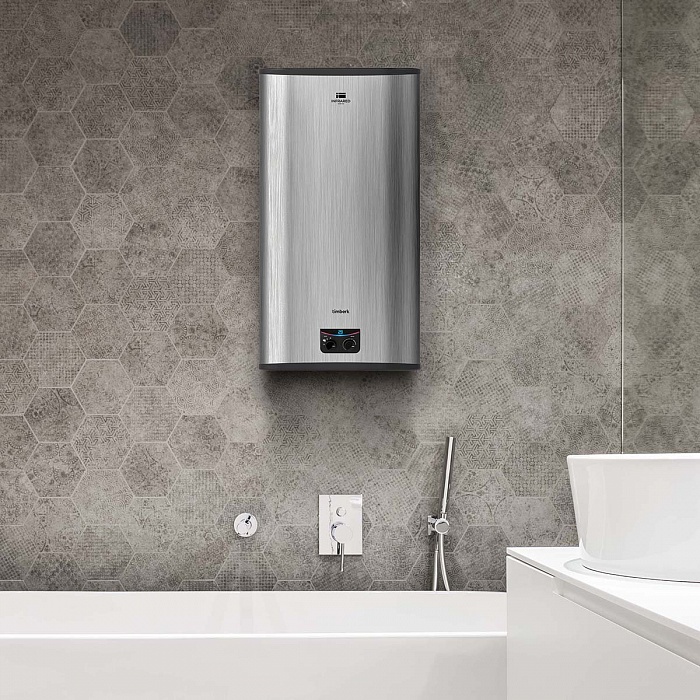

  • Thanks to housing made from high-quality, heat-resistant plastic "that looks like metal", the Infrared series water heater can adorn any modern interior.

Main characteristics

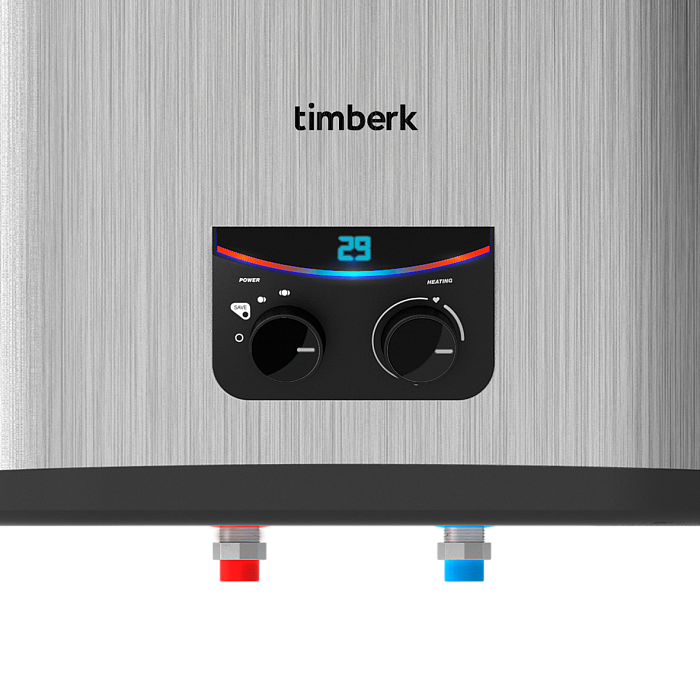

  • An intelligent system with two-color indicator signals on the SMART LIGHTS control panel allows visually monitoring water heater operations, determining the assigned operating mode
  • The Power Proof energy saving system allows choosing one of three possible heating power modes: 1000 W, 1500 W, 2500 W
  • The optimal position of the "Comfort" thermostat knob corresponds to the most comfortable water heating temperature (+58 °С, (±2 °С)), as well as the most efficient mode of electricity consumption
  • The enlarged magnesium anode protects the welded joints from corrosion, and reduces the amount of scale that forms
  • There is a high level of energy efficiency thanks to a layer of high-quality thermal insulation that uniformly, without any voids, fills the inner space between the casing and the storages
  • Real reduction of heat loss due to the complete absence of "heat bridges"
  • 3D Logic protection system: DROP Defense - protection against leakage and overpressure inside the storage, SHOCK Defense - protection against electrical leakage (ELCB), HOT Defense - two-level protection against overheating
  • Aluminum handles on the control panel Includes a 1.5 meter power cord.
Model
SWH FSM7 50 V
SWH FSM7 80 V
Rated power consumption, W
2500
2500
Heating element type
Infrared
Infrared
Volume, l
50
80
Power by steps, W
1000/1500/2500
1000/1500/2500
Rated current, A
11.4
11.4
Rated supply voltage, V/Hz
220~/50
220~/50
Electrical protection class
I class
I class
Moisture protection class
IPX4
IPX4
Location
Vertical
Vertical
Heating time at Δ 30°C, min.
38
62
Actual annual electricity consumption, kW*h
452.6
481.8
Nominal pressure, MPa
0.7
0.7
Control panel
Mechanical with an LED display
Mechanical with an LED display
Material of inner tank
Stainless steel
Stainless steel
The shape of the water heater
Flat
Flat
УЗО
Есть
Есть
Wire length, m
1.5
1.5
Weight (net), kg
13
17
Device dimensions, mm
434x870x230
516x984x270

Отзывы

Оценка 5/5 на основе 1 отзыва
Оксана Пастушкова
27 February 2024
Комментарий
Ни
Instructions Download photo

Scope of application

Electric storage water heaters (boilers) represent equipment designed for use on household and commercial premises if a centralized hot water supply system is temporarily or permanently absent. Storage water heaters are ideally suited to deliver hot water both to houses outside the city limits and apartments inside the city.

The water heaters are hooked up to a building’s regular electrical network, and can enable delivering hot water to several points of consumption. They differ from each other chiefly in terms of their cubic capacity (generally speaking, this ranges from 30 to 100 liters), the heating element’s power, the material from which the inner storage is manufactured, and the heating capacity.
