Electric storage water heater  Timberk Pafoss Series: FSL2 HE

Send to mail
Send
Choose a model
Equalization list
Added
Volume, l
Застраховано
Volume, l
100 一 30
Rated power consumption, W
2000
Heating element type
Brass
Location
Horizontal
Control panel
Mechanical with an LED display
Timberk customers have made their choice: the Pafoss series is one of the top sellers in the product range. There is an elegant control panel with an LED display, convenient control dial, and uncluttered design on the front panel. The assembly is performed with a consistently high level of quality, and reliably operates 365 days a year.

Confirmed by the quality laboratory

About the device

Advantages

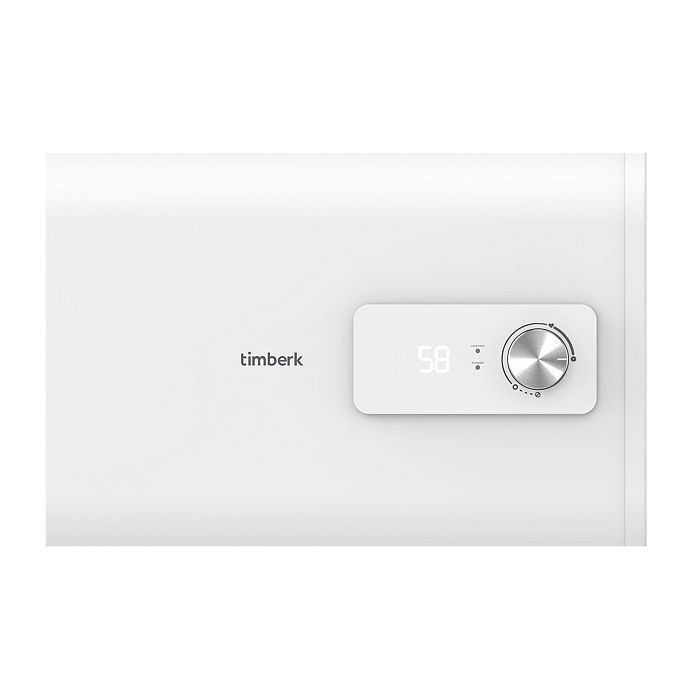

  • Revitalized design for the control panel that displays the water’s real temperature on the LED display
  • The outer casing is made of high-quality steel
  • A frontal control panel for your comfort.


Main characteristics

  • Impressive ergonomic control panel LED display
  • Long lasting due to SUS 304 1.2 mm thick stainless steel internal tanks
  • High-quality insulation layer made using high-precision foam filling technology that significantly reduces heat losses
  • 3D Logic protection system: DROP Defense - protection against leakage and overpressure inside the storage, SHOCK Defense - protection against electrical leakage (ELCB), HOT Defense - two-level protection against overheating
  • A heavy-duty overflow system guarantees efficient mixing and uniform heating.
  • The set includes a 1.5 meter power cord.

Rated power consumption, W
2000
2000
2000
2000
Heating element type
Brass
Brass
Brass
Brass
Volume, l
30
50
80
100
Rated current, A
9.1
9.1
9.1
9.1
Rated supply voltage, V/Hz
220~/50
220~/50
220~/50
220~/50
Electrical protection class
I class
I class
I class
I class
Moisture protection class
IPX4
IPX4
IPX4
IPX4
Location
Horizontal
Horizontal
Horizontal
Horizontal
Heating time at Δ 30°C, min.
42
70
112
140
Actual annual electricity consumption, kW*h
394.2
496.4
565.8
642.4
Nominal pressure, MPa
0.8
0.8
0.8
0.8
Control panel
Mechanical with an LED display
Mechanical with an LED display
Mechanical with an LED display
Mechanical with an LED display
Material of inner tank
Stainless steel
Stainless steel
Stainless steel
Stainless steel
The shape of the water heater
Flat
Flat
Flat
Flat
УЗО
Есть
Есть
Есть
Есть
Wire length, m
1.5
1.5
1.5
1.5
Weight (net), kg
9.86
13.79
19.36
22.79
Device dimensions, mm
520x455x258
795x455x258
925x516x293
1125x516x293

Scope of application

Electric storage water heaters (boilers) represent equipment designed for use on household and commercial premises if a centralized hot water supply system is temporarily or permanently absent. Storage water heaters are ideally suited to deliver hot water both to houses outside the city limits and apartments inside the city.

The water heaters are hooked up to a building’s regular electrical network, and can enable delivering hot water to several points of consumption. They differ from each other chiefly in terms of their cubic capacity (generally speaking, this ranges from 30 to 100 liters), the heating element’s power, the material from which the inner storage is manufactured, and the heating capacity.
